Product Information

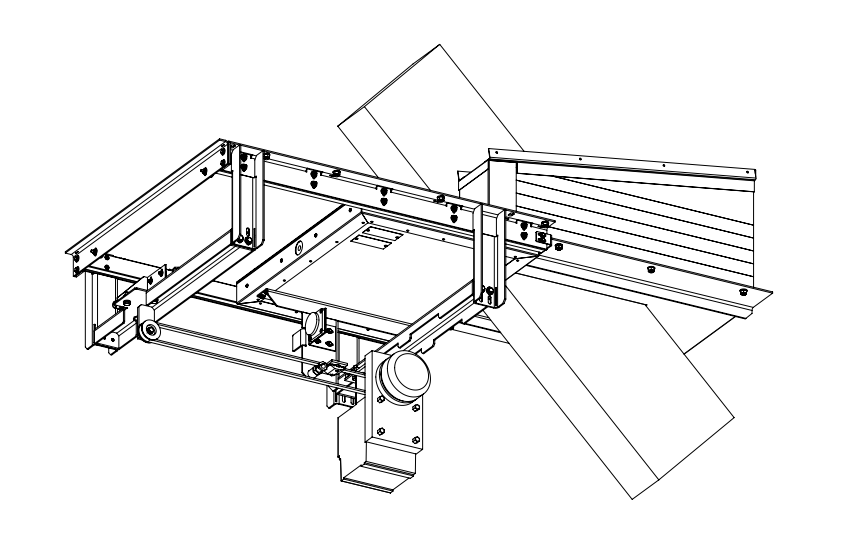

The ceiling and floor sliders are innovative solutions for cross-floor and continuous conveyor applications, developed for use in buildings with high safety requirements. They combine robust functionality with a space-saving design and meet the standards DIN 4102-5 / EN 1366-7.
| Wall opening Width: |
200-1.000 |
| Height: | 200-1.500 |
| General building approval: | Z- 6.6 -1993 |
| Fire resistance DIN 4102-5 / EN 1366-7: | T90 |
| Closing directions: |  |
| Version: | • Slide blade optionally with or without sheet steel cladding (t = 1,0 mm) • Use in cross-floor conveyor systems • Use in confined spaces • Installation position on or under the ceiling possible • Various designs of continuous conveyor systems possible • Separate and continuous conveyor technology possible |
Surfaces
Depending on the door element, different surfaces are possible.
FAA-S | FAA-H | FAA-D | FAA-B
surface without cladding
FAA-S | FAA-H | FAA-D | FAA-B
