Product Information

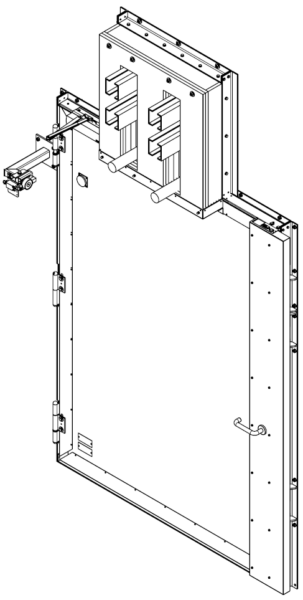

Hodapp's rotating elements are space-saving rotating wing closures for tight installation situations in conveyor systems. They are made of fire protection panels and galvanized steel or stainless steel, close from the left and right, and offer special half-shell recesses for continuous conveyor technology. Reopening can be done manually or motor-driven, and the elements meet the T90 fire protection class.
| Wall opening Width: |
600-1.200 |
| Height: | 700-3.500 |
| General building approval: | Z- 6.6 -1994 |
| Fire resistance DIN 4102-5 / EN 1366-7: | T90 |
| Closing directions: |  |
| Version: | • Pivoting sash optionally with or without sheet steel cladding (t = 1,0 mm) • Conveyor system can be implemented as continuous at the top or continuous at the bottom • Floor level or elevated installation position possible • Separate and continuous conveyor technology possible |
Surfaces
Depending on the door element, different surfaces are possible.
FAA-S | FAA-H | FAA-D | FAA-B
surface without cladding
FAA-S | FAA-H | FAA-D | FAA-B
