Product Information

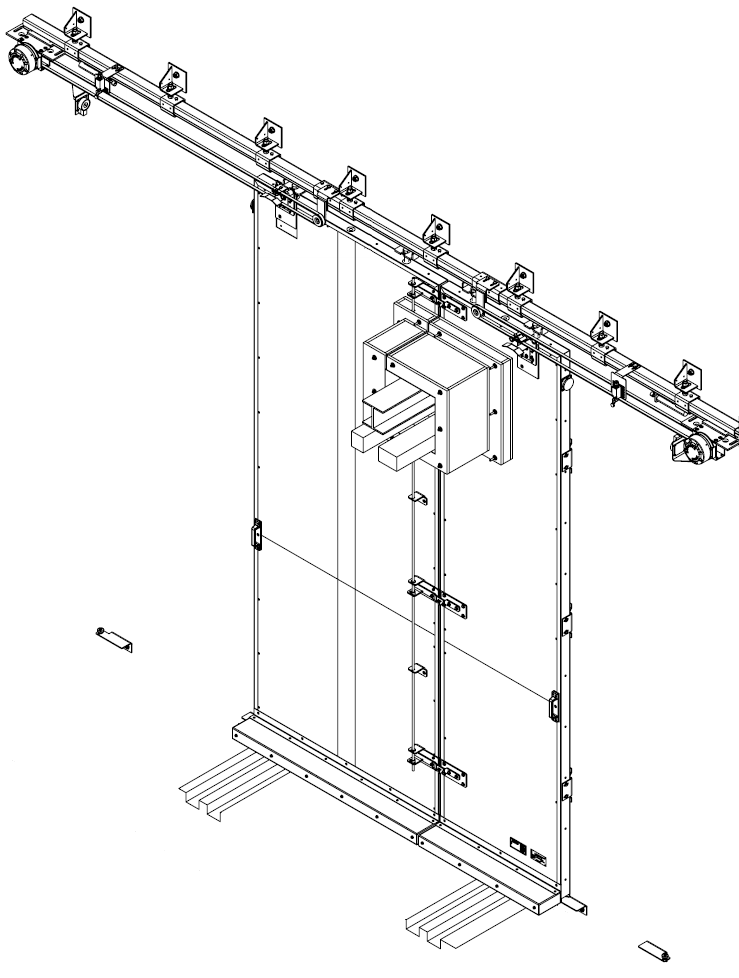

Hodapp's robust sliding elements are ideal for overhead conveyors and multiple conveyor lines and consist of a sandwich structure completely clad in sheet metal with fire protection panels for T90 fire resistance. They offer maximum flexibility with the option of closing either from right to left or from left to right. With a door leaf thickness of 64 mm and motorized reopening, they are perfect for wall installation.
| Wall opening Width: |
200-3.600 |
| Height: | 200-3.400 |
| General building approval: | Z- 6.6 -1993 |
| Fire resistance DIN 4102-5 / EN 1366-7: | T90 |
| Closing directions: |  |
| Version: | • Slide blade optionally with or without sheet steel cladding (t = 1,0 mm) • Asymmetrical wing division possible • Conveyor profile running through the top or bottom, and can be installed at floor level or in an elevated position • Various designs of continuous conveyor systems possible • Separate and continuous conveyor technology possible |
Surfaces
Depending on the door element, different surfaces are possible.
FAA-S | FAA-H | FAA-D | FAA-B
surface without cladding
FAA-S | FAA-H | FAA-D | FAA-B
